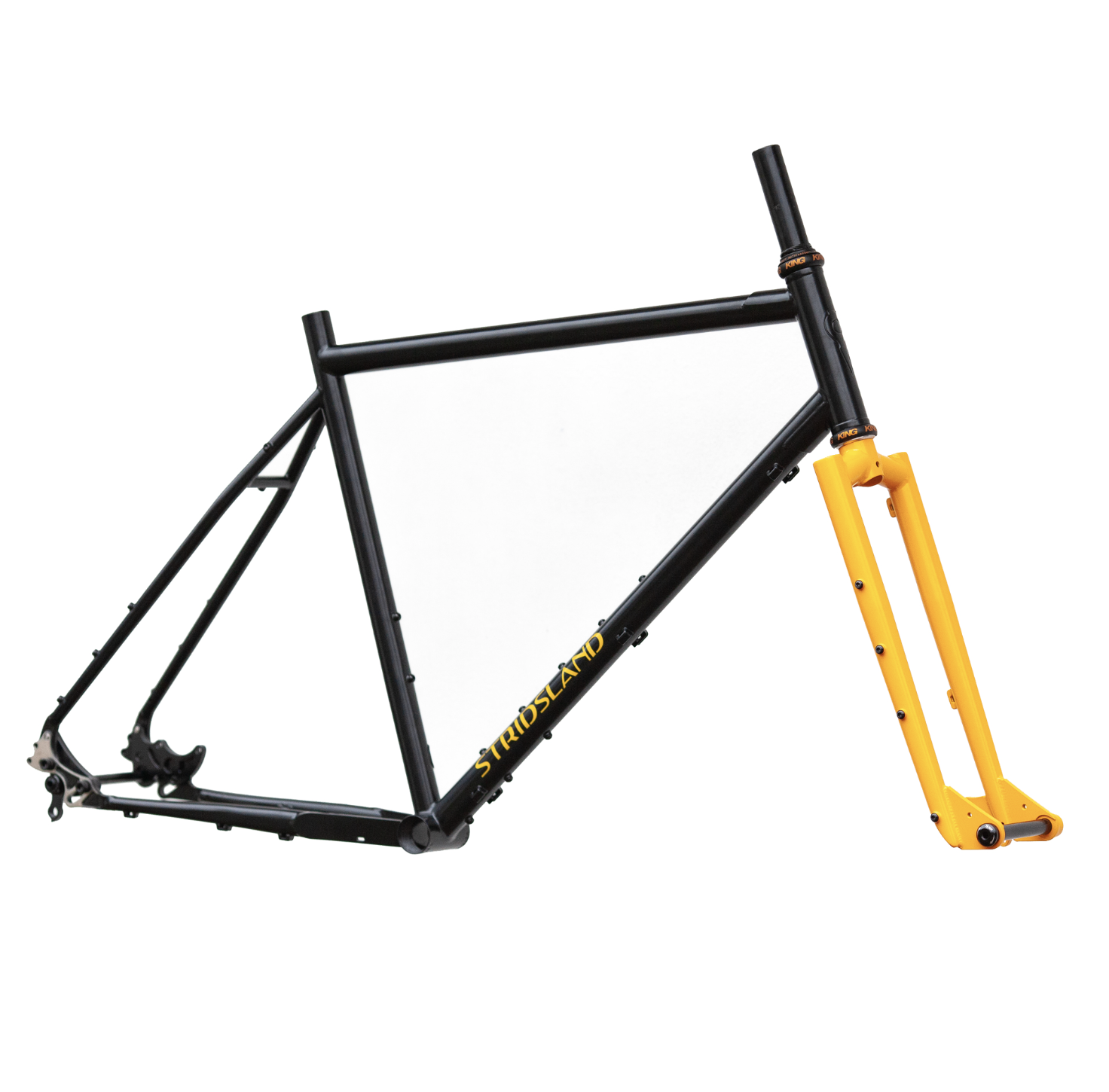

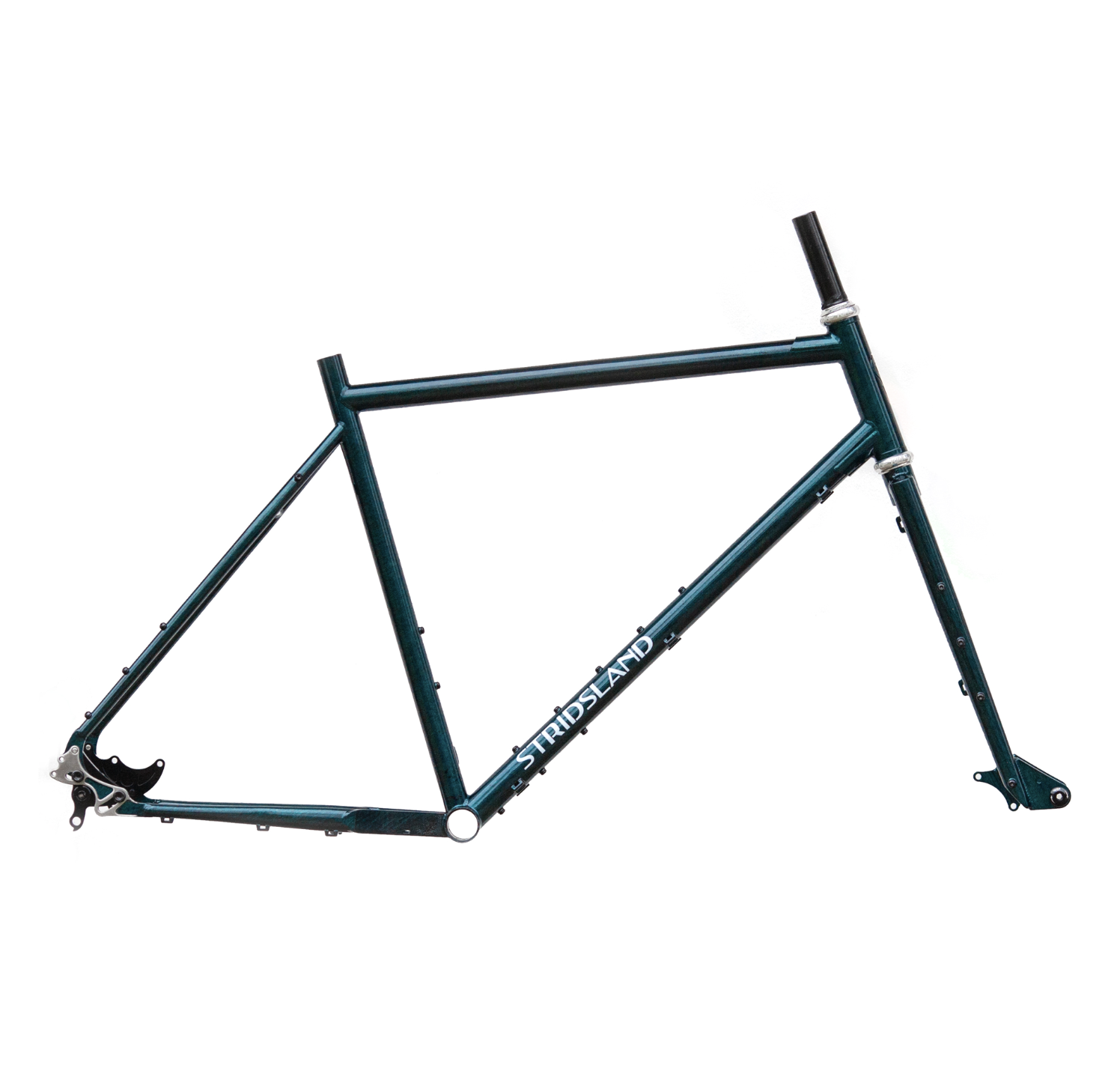

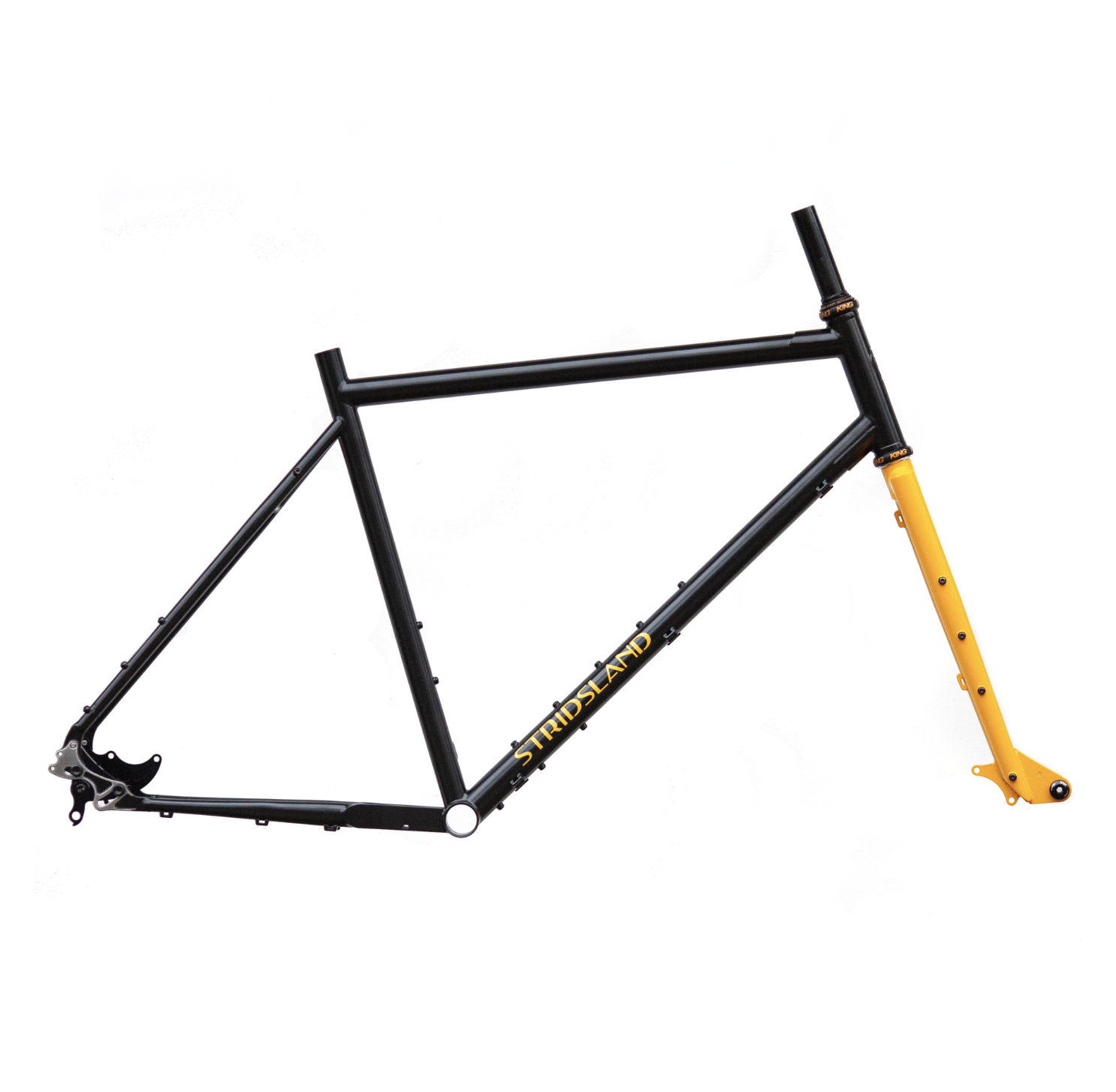

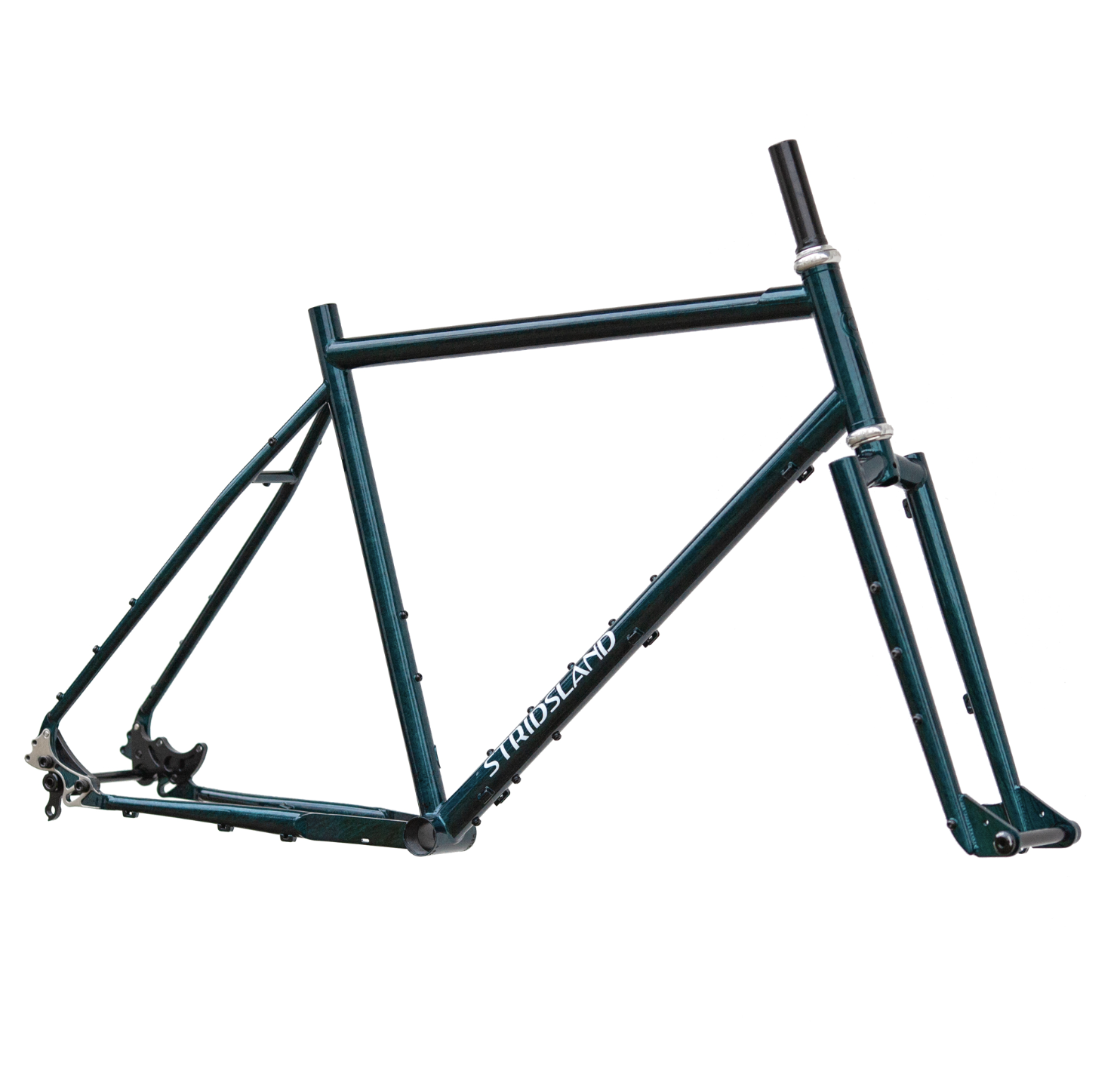

Stridsland Beachcomber Frame

The Beachcomber is a playful, modern take on the classic 26” mountain bike. Built around the idea of merging BMX agility with MTB capability, it’s designed for pure fun and all-terrain adventure. Think of it as a bridge between retro style and modern function — with geometry that encourages fast handling, plenty of tire clearance, and a spacious front triangle for longer rides and loaded setups.

The frame is made from 4130 chromoly steel with a double-butted front triangle and stainless details, giving it both strength and timeless durability. Adjustable rocker dropouts, stealth dropper post routing, and external cable runs keep everything simple, reliable, and future-proof. With the included Barnacle Lite fork, thru-axles, and a generous range of mounts, the Beachcomber is ready for whatever you throw at it — from local trails to fully loaded adventures.

This is a frame for riders who want the soul of a 90s MTB with the capabilities of today.

Key Specs

• Rear spacing: 12×142 mm (non-boost, 135 mm QR inserts available)

• Rocker bolts torque: 25–30 Nm

• Front spacing: 15×100 mm (non-boost)

• Bottom bracket: 73 mm BSA threaded

• Max chainring: 38T (49 mm chainline)

• Headtube: 1 1/8” straight, EC34 headset

• Seatpost: 27.2 mm (30.0 mm seat clamp)

• IS disc mounts (front and rear)

• Rotor compatibility: 160–203 mm (recommended 180 mm)

• Material: 4130 Cro-Mo, double-butted front triangle, stainless dropouts

• Includes Barnacle Lite fork + front and rear axles

• Approx. 4.5 kg (large size, incl. fork, axles, and hardware)

• Headset not included

Wheel & Tire Compatibility

• Optimized for 26 × 2.8” tires – the essence of the Beachcomber.

• Also works with 26 × 2.3” or up to 27.5 × 2.6” max.

Geometry (Rider Height Guide)

• Small (50 cm): 165–175 cm

• Medium (54 cm): 175–185 cm

• Large (58 cm): 185–195 cm

👉 The Stridsland Beachcomber is available at Staal Bikeshop as a frame-only kit, complete with fork and axles. Perfect for riders who want a unique, modern-retro machine built to explore — and built to last.
